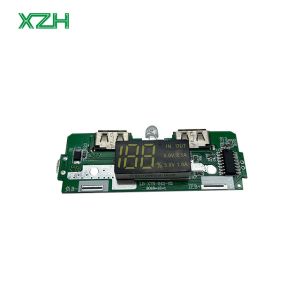

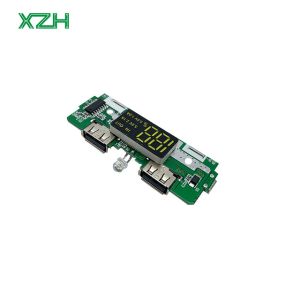

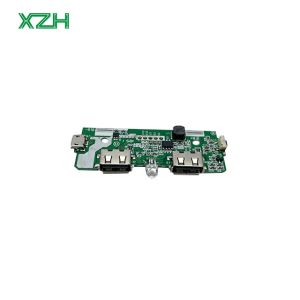

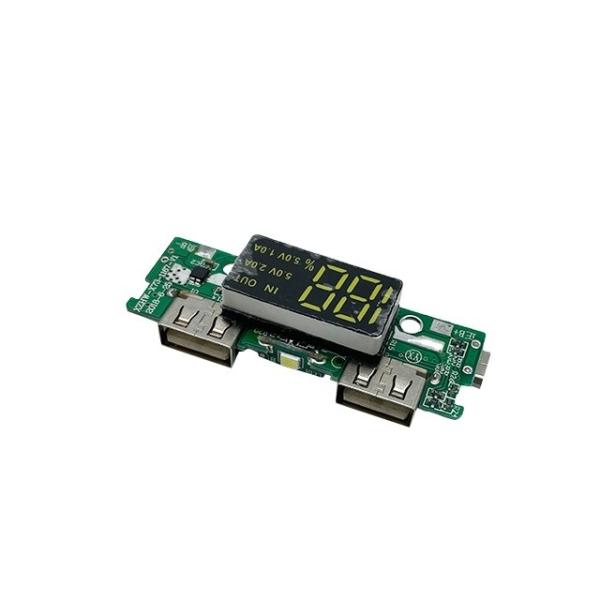

Customized Double Sided PCBA smart Electronics LCD Display PCB Assembly

Product Categories

Shenzhen XinZhanHong Technology Co., Ltd.

Contact Now

Customized Double Sided PCBA smart Electronics LCD Display PCB Assembly

Ask Lasest Price
Model Number :	PCBA-155
Brand Name :	XZH
Price :	$1.00/pieces >=1 pieces

Add to Cart

Product Details
Company Profile

Customized Double Sided PCBA smart Electronics LCD Display PCB Assembly

Double sided lcd display Design PCBA Power Supply Bank PCB Supplier

XZH: Your One-Stop ODM/OEM Solution Provider

Customized Double Sided PCBA smart Electronics LCD Display PCB Assembly

Product Introduction

Layers	1-58 layers
Board material	FR-4 / High TG FR-4 / Halogen Free material/Rogers/Arlon/Taconic/Teflon
Surface treatment	HASL, HASL lead free, Immersion Gold, Immersion Tin, r, Hard gold, Flash gold, OSP…
Silk screen colour	White / Black / Yellow
Solder mask colour	Green / Blue / Red / Black / Yellow / White

Capabiity

Description	Technology & Capabilities
1. Product Range	Rigid PCBs from 2- 24 layers, HDI; Aluminium base
2. Min. Board Thickness	2 layer	4 layer	6 layer	8 layer	10 layer
		min. 0.2 mm	0.4 mm	1 mm	1.2 mm	1.5 mm
		12 & 14 layer	16 layer	18 layer	20 layer	22 & 24 layer
		1.6 mm	1.7 mm	1.8 mm	2.2 mm	2.6 mm
3. Max. Board Size	610 x 1200 mm
4. Base Material	FR-4 Glass Epoxy laminate, Aluminium base, RCC
5. Surface Finish Treatment	Electroless nickel Immersion gold ( Electoless Ni/Au). Organic Solerability Preservatives ( OSP or Entek). Hot Air Leveling ( Lead- Free, RoHS). Carbon Ink. Peelable Mask. Gold Fingers. Immersion Silve. Immersion Tin. Flash gold ( Electrolytic)
6. Major Laminate	King Boad (KB-6150). ShengYi (S1141; S1170). Arion. YGA-1-1; Rogers and others.
7. Via Holes	Copper PTH/ Blind Via/ Buried Via/ HDI 2+N+2 with IVH
8. Copper Foil Thickness	18um/ 35um/ 70um~245um (outer layer 0.5oz~7oz) 18um/ 35um/ 70um~ 210um (inner layer 0.5oz~6oz)
9. Min. Via Size and Type	Dia. 0.15mm (Finished). Aspect Ratiao = 12; HDI holes (＜0.10mm)
10. Min. Line Width & Spacing	0.75 mm/ 0.10mm ( 3mil/ 4mil)
11. Min Via Hole Size & Pad	Via: Dia, 0.2mm/ pad. dia. 0.4mm; HDI＜0.10mm via
12. Impedance I Control Tol.	+/- 10% ( min. +/- 7 Ohm)
13. Solder Mask	Liquid Photo- Image (LPI)
14. Profiling	CNC Routing, V- Cutting, Punching, Push back punching, Connector chamfering
15. Capacity	100 k㎡ output monthly

Customer Services

PCB Service

XZH Supply single-side, double –side board, multilayer boards (1-20 layers), Boards type:Rigid PCB(CEM, FR4), Flexible PCB, Rigid-Flex PCB, MCPCB(Aluminum PCB), Ceramic PCB, RF PCB, etc.

PCB Assembly&Components Sourcing

XZH offer Printed Circuit Board Assembly ,components Sourcing and complete solutions. what we can always gurantee is the best quality,competitive price and best service.

More Details or Other requirements welcome to Email and Chat with us.

Company Profile

XZH Technology Co., Ltd. was founded in 2014, with a perfect quality assurance system and advanced test-analyzed instruments. We have rich experience in the production and development of voice recorders and wireless earphone power banks for many years. Our specialty is in PCBA assembly, suitable for computers, audio devices, home electronic devices, and other precision instruments. We have gained the trust of clients in China and abroad. With the mission of 'Customer Priority and Quality Comes First,' we have passed UL, VDE, CQC, CAS, ISO9001, and ISO1400 certifications.

Certifications

Exhibition

Our Advantages

Product Leading Time

	Sample Lead time	Mass production lead time
Single sided PCB	1~3 days	4~7 days
Double sided PCB	2~5 days	7~10 days
Multilayer PCB	7~8 days	10~15 days
PCB Assembly	8~15 days	2~4 weeks
Delivery time	3-7 days	3-7 days
Package: Anti-static Package with carton

FAQ

Q1:Are my design files secure when I send them to you?

A:Your files held in complete safety and security. Your files are never
shared nor will any third parties have access to your design files. Fulltronics can sign a Non-disclosure agreement before sending files.

Q2:For small quantity orders, can you produce prototype PCBs?

A:Yes, XZH PCB can produce prototypes. but the greater the quantity, the greater the cost savings.

Q3:Do you have after-sales product servicing available for your customers?

A:Yes, for any quality problems XZH PCB will take our responsibility to solve them for you at any time. What we can always guarantee is our best service, high quality with competitive price.

Q4:What's files do you need in the PCBA projects?

A:Exclude the pcb file, the PNP(Pick and Place) file and Components Position file also needed.

Q5: Does our product will be tested before shipment?

A: Yes, we could provide Function Circuit Testing if you provide us the testing methods.
