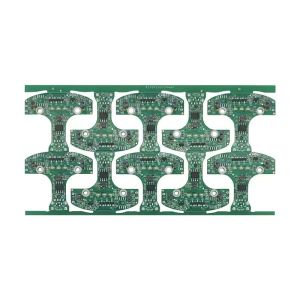

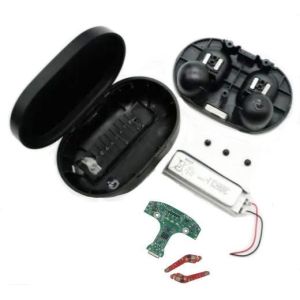

Immersion Silver Consumer Electronics PCBA 20oz TWS Bluetooth Earphone PCB Board

Product Categories

Shenzhen XinZhanHong Technology Co., Ltd.

Contact Now

Immersion Silver Consumer Electronics PCBA 20oz TWS Bluetooth Earphone PCB Board

Ask Lasest Price
Model Number :	XZH-PCB
Brand Name :	Original and New
Price :	$0.50/pieces 1-9 pieces

Add to Cart

Product Details
Company Profile

Immersion Silver Consumer Electronics PCBA 20oz TWS Bluetooth Earphone PCB Board

OEM TWS Bluetooth Earphone PCB FR4 Material Manufacturing One Stop Service

XZH: Your One-Stop ODM/OEM Solution Provider

Immersion Silver Consumer Electronics PCBA 20oz TWS Bluetooth Earphone PCB Board

Capabiity

Description	Technology & Capabilities
1. Product Range	Rigid PCBs from 2- 24 layers, HDI; Aluminium base
2. Min. Board Thickness	2 layer	4 layer	6 layer	8 layer	10 layer
		min. 0.2 mm	0.4 mm	1 mm	1.2 mm	1.5 mm
		12 & 14 layer	16 layer	18 layer	20 layer	22 & 24 layer
		1.6 mm	1.7 mm	1.8 mm	2.2 mm	2.6 mm
3. Max. Board Size	610 x 1200 mm
4. Base Material	FR-4 Glass Epoxy laminate, Aluminium base, RCC
5. Surface Finish Treatment	Electroless nickel Immersion gold ( Electoless Ni/Au). Organic Solerability Preservatives ( OSP or Entek). Hot Air Leveling ( Lead- Free, RoHS). Carbon Ink. Peelable Mask. Gold Fingers. Immersion Silve. Immersion Tin. Flash gold ( Electrolytic)
6. Major Laminate	King Boad (KB-6150). ShengYi (S1141; S1170). Arion. YGA-1-1; Rogers and others.
7. Via Holes	Copper PTH/ Blind Via/ Buried Via/ HDI 2+N+2 with IVH
8. Copper Foil Thickness	18um/ 35um/ 70um~245um (outer layer 0.5oz~7oz) 18um/ 35um/ 70um~ 210um (inner layer 0.5oz~6oz)
9. Min. Via Size and Type	Dia. 0.15mm (Finished). Aspect Ratiao = 12; HDI holes (＜0.10mm)
10. Min. Line Width & Spacing	0.75 mm/ 0.10mm ( 3mil/ 4mil)
11. Min Via Hole Size & Pad	Via: Dia, 0.2mm/ pad. dia. 0.4mm; HDI＜0.10mm via
12. Impedance I Control Tol.	+/- 10% ( min. +/- 7 Ohm)
13. Solder Mask	Liquid Photo- Image (LPI)
14. Profiling	CNC Routing, V- Cutting, Punching, Push back punching, Connector chamfering
15. Capacity	100 k㎡ output monthly

XZH PCBA

WHAT OUR CUSTOMERS SAY

"We at Italy have continued to work with XZH PCBA over the years due to their high level of professionalism, reliability,technical know how and support. Whether it is a crucial breakdown repair or new installation PCBA is our first call of choice”

Shenzhen xinzhanhong technology co,ltd

XZH PCBA based in Shenzhen but operating nationally, PCBA Technical Solutions specialise in commercial and retail HVAC and Mechanical projects. From our full design and quotation services, through to the installation, project management and maintenance teams, we are able to provide our clients with their full PCBA specification.

Company Profile

XZH Technology Co., Ltd. was founded in 2014, with a perfect quality assurance system and advanced test-analyzed instruments. We have rich experience in the production and development of voice recorders and wireless earphone power banks for many years. Our specialty is in PCBA assembly, suitable for computers, audio devices, home electronic devices, and other precision instruments. We have gained the trust of clients in China and abroad. With the mission of 'Customer Priority and Quality Comes First,' we have passed UL, VDE, CQC, CAS, ISO9001, and ISO1400 certifications.

Certifications

Exhibition

Our Advantages

FAQ

Q1. Who are we?
--We are based in Guangdong, China, start from 2014,sell to Western Europe(11.00%), Southeast Asia(10.00%), South America(10.00%), Central America(9.00%), Mid East(9.00%), North America(9.00%), Southern Europe(8.00%), Africa(8.00%), Eastern Europe(7.00%), Eastern Asia(5.00%), Domestic Market(5.00%), Oceania(5.00%), Northern Europe(2.00%), South Asia(2.00%). There are total about 101-200 people in our office.

Q2. How can we guarantee quality?
--Always a pre-production sample before mass production;
Always final Inspection before shipment;

Q3.What can you buy from us?
--PCBA,PCB Assembly,PCBA Service,PCB,ONE-STOP PCBA

Q4. Why should you buy from us not from other suppliers?
--XinzhanhongTechnology Co., Ltd,which specialize in electronic manufacturing services (world known as EMS). We can offer one-stop services from PCB manufacturing, PCB assembling, components sourcing, programming, testing, conformal coating and housing asse.

Q5. What services can we provide?
--Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
