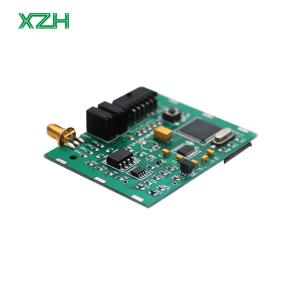

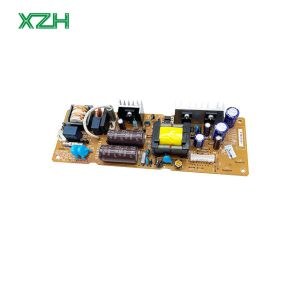

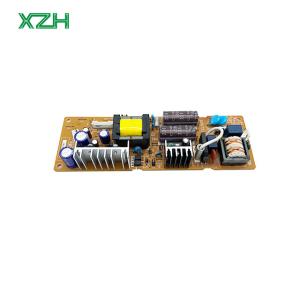

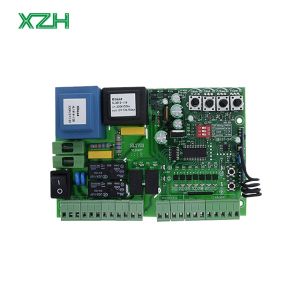

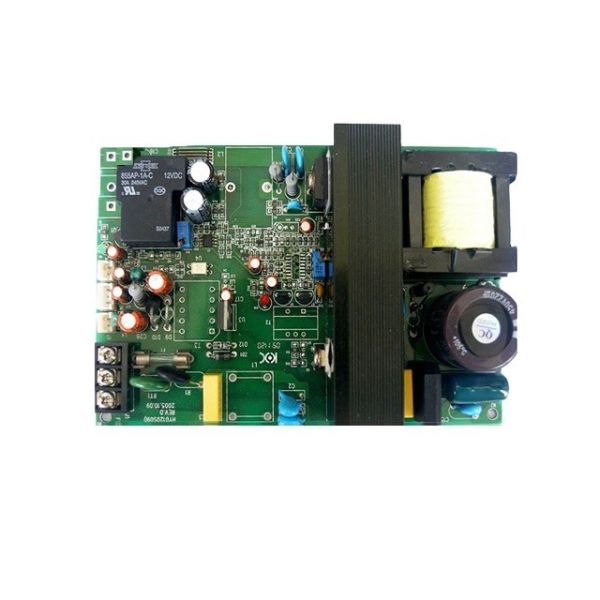

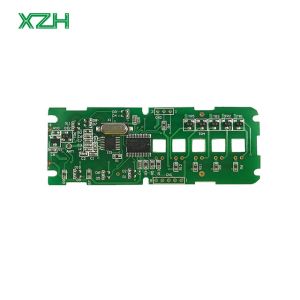

OEM Electronics Home Appliance Pcba Pcb Manufacturer

Ask Lasest Price
Model Number :	XZH PCB Assembly
Supply Ability :	300000 Piece/Pieces per Month
Price :	CN¥86.52/pieces 1-99999 pieces

Add to Cart

Product Details
Company Profile

OEM Electronics Home Appliance Pcba Pcb Manufacturer

Product Description

Base Material	FR-4 / High TG FR-4 / Halogen Free material/Rogers/Arlon/Taconic/Teflon
Surface treatment	HASL, HASL lead free, Immersion Gold, Immersion Tin, Immersion Silver, Hard gold, Flash gold, OSP…
Solder mask	Double -sided green LPI ,Also support red , white, yellow, blue , black
Design file format	Gerber RS -274X, 274D, Eagle , and AutoCAD's DXF , DWG

Leading Time			Leading Time
Layer	Quick Turn/Usual Time	Mass production
2L	24hours/ 4-5days	8-10days
4L	48hours/ 6-7days	10-12days
6L	72hours/ 7-8days	12-14days
8L	72hours/ 8-10days	16-18days
10L	96hours/ 12-14days	18-20days
More Information,welcome Email us!

Detailed terms for PCB assembly: * Technical requirement: 1. Professional surface-mounting and through-hole soldering technology 2. Various sizes like 1206, 0805, 0603 components SMT technology 3. ICT (in circuit test), FCT (functional circuit test) technology 4. PCB assembly with UL, CE, FCC, RoHS approval 5. Nitrogen gas reflow soldering technology for SMT 6. High standard SMT and solder assembly line 7. High density interconnected board placement technology capacity

Inquiry:
1.PCB:Pleasep provide gerber file for detail Quote.
2.PCBA:Please provide gerder file and Bom list.
3.COPY PCB/PCBA:Please provide us the details of PCB.Picture and Sample will be better.

Company Profile

Company Introduction

Shenzhen XZH PCBA Founded in 2011, we focus on PCB(Rigid, Flex, Aluminium, Teflon, Rogers, ceramics, HDI...) making, PCB assembly, Components supply chain optimize and sourcing, enclosure development, function test for 10 years. We have a total of 8 SMT Lines, 3 DIP lines,2 test lines, and 2 packaging lines,13 AOI machines,1 X-RAY machine, 2 sample test machines. We imported advanced production and testing equipment, develop new technology and implement quality management and environmental management. Our rule is " Quality comes first". What we can Always guarantee is our best price, High quality, and fast delivery.

Recommend Products

FAQ

Q:Are my design files secure when I send them to you? A:Your files held in complete safety and security. Your files are never shared nor will any third parties have access to your design files. Fulltronics can sign a Non-disclosure agreement before sending files. Q:For small quantity orders, can you produce prototype PCBs? A:Yes, XZH PCB can produce prototypes. but the greater the quantity, the greater the cost savings. Q:Do you have after-sales product servicing available for your customers? A:Yes, for any quality problems XZH PCB will take our responsibility to solve them for you at any time. What we can always guarantee is our best service, high quality with competitive price. Q:What's files do you need in the PCBA projects? A:Exclude the pcb file, the PNP(Pick and Place) file and Components Position file also needed. Q: Does our product will be tested before shipment? A: Yes, we could provide Function Circuit Testing if you provide us the testing methods.
