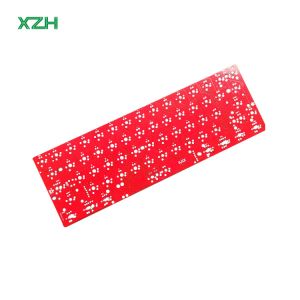

High Quality OEM Pcb Manufacturer custom pacb gaming keyboard hot swap pcb mechanical split keyboard pcb

Ask Lasest Price
Model Number :	XZH PCB
Brand Name :	XZH PCBA
Price :	CN¥3.61-108.15/pieces

Add to Cart

Product Details
Company Profile

High Quality OEM Pcb Manufacturer custom pacb gaming keyboard hot swap pcb mechanical split keyboard pcb

XZH: Your One-Stop ODM/OEM Solution Provider

Product Show

PCBA Technical Capacity

SMT	Position accuracy:20 um
		Components size:0.4×0.2mm(01005) —130×79mm,Flip-CHIP,QFP,BGA,POP
		Max. component height::25mm
		Max. component height::25mm
		Max. PCB size:680×500mm
		Min. PCB size: no limited
		PCB thickness:0.3 to 6mm
Wave-Solder	Max. PCB width:450mm
		Min. PCB width: no limited
		Component height:Top 120mm/Bot 15mm
Sweat-Solder	Metal type :part, whole, inlay, sidestep
		Metal material:Copper , Aluminum
		Surface Finish:plating Au, plating sliver , plating Sn
		Air bladder rate:less than20%
Testing	ICT,Probe flying,burn-in,function test,temperature cycling,AXI – 2D and 3D automated X-ray inspection, AOI – automated optical inspection

Details for PCB &PCBA

Base material	FR4,High-TG FR4,CEM3,aluminum, High Frequencey frequency(Rogers,Taconic,Aron,PTFE,F4B)
Layers	1-4 Layers(Alunimum), 1-32 layers(FR4)
Aluminum Machining	Drilling, Tapping, Milling, Routing, Die-Punching, Break-off tab available
Min SMD Pad Pitch	0.2mm (8mil)
Surface Finishing	HASL lead free,ENIG,Plated Gold,Immersion Gold,OSP
Solder Mask Color	Green, Blue, Black, White, Yellow, Red, Matt Green, Matt Black, Matt Blue
Legend Color	Black, White etc
Assembly Types	Surface mount Thro-hole Mixed technology (SMT & Thru-hole) Single or double sided placement Conformal coating Shield cover assembly for EMI emission control
Component types	SMT 01005 or larger BGA 0.4mm pitch, POP (Package on Package) WLCSP 0.35mm pitch Hard metric connectors Cable & wire
Stencils	Laser-cut stainless steel

Want more information or would like to receive a quote? Click the CHAT NOW button at the top right to contact our salespeople.

Customer Services

PCB Service

XZH Supply single-side, double –side board, multilayer boards (1-20 layers), Boards type:Rigid PCB(CEM, FR4), Flexible PCB, Rigid-Flex PCB, MCPCB(Aluminum PCB), Ceramic PCB, RF PCB, etc.

PCB Assembly&Components Sourcing

XZH offer Printed Circuit Board Assembly ,components Sourcing and complete solutions. what we can always gurantee is the best quality,competitive price and best service.

More Details or Other requirements welcome to Email and Chat with us.

Company Profile

Founded in 2014, XZH Technology Co., Ltd is a reputable entity, known for its strong technical team, comprehensive quality assurance systems, and cutting-edge analytical instruments. As a specialized PCB manufacturer, our products serve a wide range of applications across consumer electronics, telecommunications, medical equipment, and industrial sectors, enjoying robust demand in European and Southeast Asian markets.

Our holistic service offerings encompass schematic design, board layout, component sourcing, firmware design, mechanical design, PCBA, and chip cloning. Additionally, we extend our services to component procurement, PCB and FPC assembly, packaging, and logistics, ensuring a seamless one-stop solution for our clients. We pride ourselves on sourcing high-quality raw materials and key components from renowned suppliers such as Sharp, Toshiba, ST, Samsung, Infineon, JRC, and NEC, further underscoring our commitment to excellence.

Our facilities, certified by ISO 9001:2000 and ISO 14001:2004, span 2,000 square meters and are staffed by 300 skilled workers. We boast a production capacity of 10,000 square meters of PCB and 5,000 square meters of PCB FPC monthly. Our commitment to quality is reflected in our rigorous QC processes, supported by 30 experienced auditors and advanced testing equipment like AOI, BGA X-ray, and PCB E-test, ensuring compliance with IECO-HSPM QC 080000, CE, UL, and RoHS standards.

Aiming for "Professional Management, Large-scale Industry, International Market" as our strategic goal, we invite you to explore partnership opportunities with us for detailed insights into our services and capabilities.

Certifications

Exhibition

Our Advantages

Product Leading Time

	Sample Lead time	Mass production lead time
Single sided PCB	1~3 days	4~7 days
Double sided PCB	2~5 days	7~10 days
Multilayer PCB	7~8 days	10~15 days
PCB Assembly	8~15 days	2~4 weeks
Delivery time	3-7 days	3-7 days
Package: Anti-static Package with carton

FAQ

Q1:Are my design files secure when I send them to you?

A:Your files held in complete safety and security. Your files are never
shared nor will any third parties have access to your design files. Fulltronics can sign a Non-disclosure agreement before sending files.

Q2:For small quantity orders, can you produce prototype PCBs?

A:Yes, XZH PCB can produce prototypes. but the greater the quantity, the greater the cost savings.

Q3:Do you have after-sales product servicing available for your customers?

A:Yes, for any quality problems XZH PCB will take our responsibility to solve them for you at any time. What we can always guarantee is our best service, high quality with competitive price.

Q4:What's files do you need in the PCBA projects?

A:Exclude the pcb file, the PNP(Pick and Place) file and Components Position file also needed.

Q5: Does our product will be tested before shipment?

A: Yes, we could provide Function Circuit Testing if you provide us the testing methods.
