CH340G nano V3.0 R3 Board

Ask Lasest Price
Model Number :	CH340G nano V3.0 R3
Brand Name :	Original
Price :	CN¥12.98/pieces >=10 pieces

Add to Cart

Product Details
Company Profile

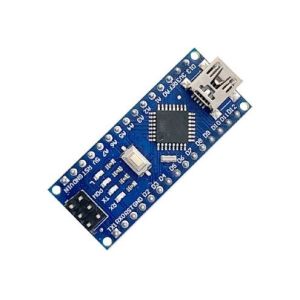

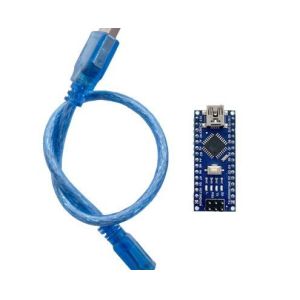

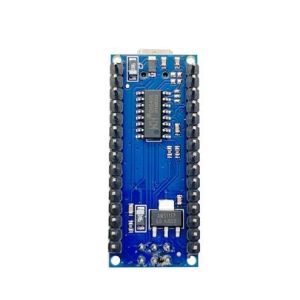

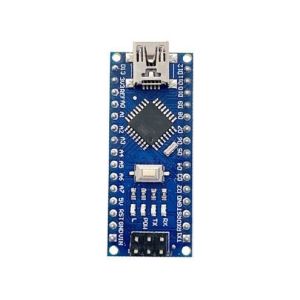

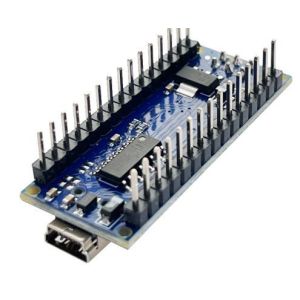

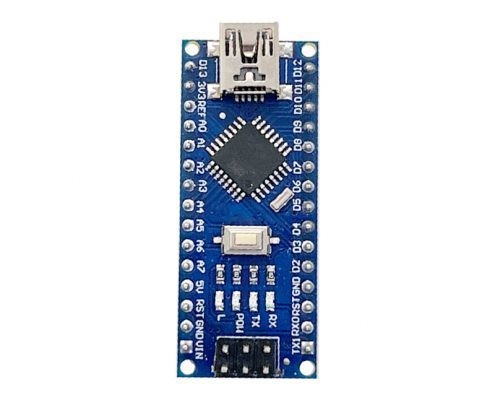

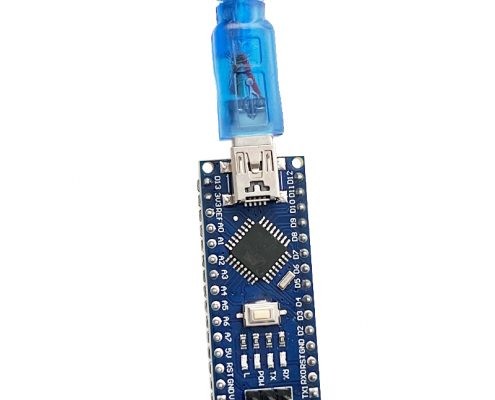

CH340G nano V3.0 R3 Board

Product Description

* This CH340G Micro-controller can be used to replace FT 232RL
* 100% Brand new and high quality
* Using Atmel Atmega328P-AU MCU
* There is boot loader installed in it
* Support USB download and Power
* Support for external 5V ~ 12V DC power supply
* Support power supply by 9V battery
* Operating Voltage(logic level): 5V
* 8 analog inputs ports:A0 ~ A7
* 14 Digital input / output ports: TX, RX, D2 ~ D13
* 6 PWM ports:D3, D5, D6, D9, D10, D11
* 1 pairs of TTL level serial transceiver ports RX / TX

100% Brand new
With this Ethernet Shield, Nano board can be used to connect to internet
controller: Microchip’s ENC28J60 ethernet / HR911105A
works as server or client
comes with efficient library and examples
direct plug puzzle board, NO soldering needed

Specification

Type	Development Board
Model Number	CH340G nano V3.0 R3
Place of Origin	original
D/C	Newest
Shipping by	DHLUPSFedexEMSHK Post
Payment	Paypal/TT/Western Union/Credit card

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
